ESP32 IR Receiver: How To Detect IR Remote Signals [Arduino IDE]

Infrared (IR) communication is widely used in remote controls for TVs, audio systems, fans, and other electronics. With the ESP32, you can read signals from these remotes using an IR receiver. This opens the door to controlling devices, triggering actions, or even building your own custom smart remote system.

In this guide, I’ll show you how to connect an IR sensor to your ESP32 to build an ESP32 IR Receiver!

Components Required

To follow along with this tutorial, you’ll need the following components:

• ESP32 Development Board
• IR Receiver Sensor/Module* (e.g., VS1838B or TSOP38238)
• IR Remote Control
• (Breadboard) & Jumper Wires

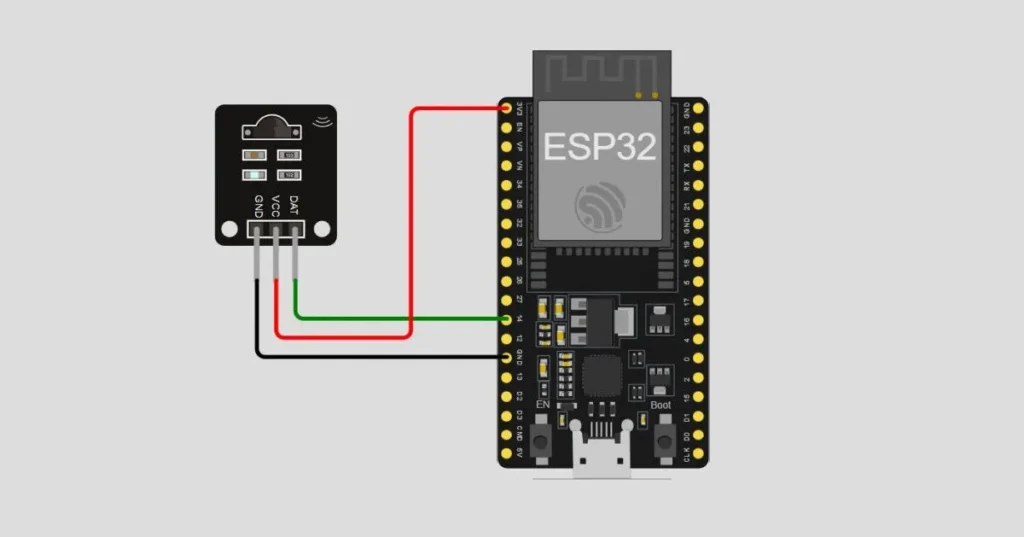

#1 Wiring The IR Receiver To The ESP32

#2 Install the IRremote Library

Top 6

ESP32 eBooks

From Zero to Professional

Shop now

To decode signals from the remote, we’ll need the IRremote library by Armin Joachimsmeyer.

In the Arduino IDE, open the Library Manager by selecting Sketch > Include Library > Manage Libraries… Then, search for IRremote (by Armin Joachimsmeyer) and install the library.

#3 Read IR Signal (Arduino Sketch)

To deal with specific button presses on the infrared remote, we need to identify the buttons with their specific ID. We can then use the ID of a button to perform a specific action in the code.

Use the following sketch to receive commands from the IR remote and print the HEX ID of a button.

#include <IRremote.h>

#define IR_PIN 14

void setup() {
  Serial.begin(115200);
  IrReceiver.begin(IR_PIN, ENABLE_LED_FEEDBACK);
  Serial.println("IR Receiver Ready");
}

void loop() {
  if (IrReceiver.decode()) {
    Serial.print("Received code: ");
    Serial.println(IrReceiver.decodedIRData.command, HEX); // Print the HEX ID
    IrReceiver.resume(); // Receive the next value
  }
}

After uploading the sketch to your ESP32, open the Serial Monitor at 115200 baud. Point your IR remote at the sensor and press some buttons. You should see the decoded IR codes (IDs) printed in hexadecimal.

#4 Detect Specific Button Presses (Arduino Sketch)

Now that you know the IR codes you need from your remote, you can modify the sketch to trigger specific behaviour when a button is pressed.

In the following, we will toggle the built-in LED of the ESP32 when the power button (46) on the remote is pressed.

#include <Arduino.h>
#include <IRremote.h>

#define IR_RECEIVE_PIN 23
#define LED_PIN 2

bool LED = false;

void setup() {
  Serial.begin(115200);
  pinMode(LED_PIN, OUTPUT);
  IrReceiver.begin(IR_RECEIVE_PIN, DISABLE_LED_FEEDBACK);
  Serial.println("IR Receiver Ready");
}

void loop() {
  if (IrReceiver.decode()) {
    uint8_t command = IrReceiver.decodedIRData.command;
    switch (command) {
      case 0x45: // Example button code
        Serial.println("Power button pressed!");
        digitalWrite(LED_PIN, LED);
        LED = !LED;
        break;
      case 0x46:
        Serial.println("Another button was pressed!");
        break;
      // Add more cases as needed
    }
    IrReceiver.resume();
  }
}

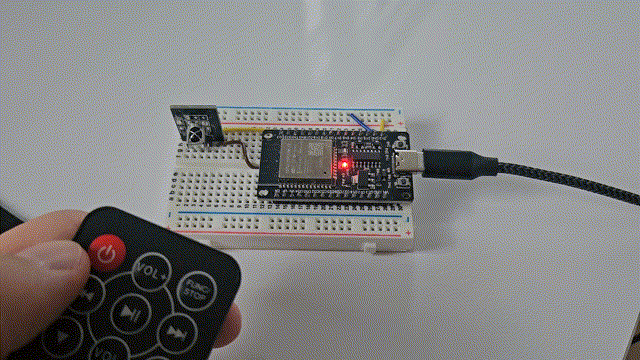

Here’s the result:

Top 6

Arduino eBooks

From Zero to Professional

Shop now

Project Ideas

• Use the IR remote to control relays or lights
• Build a smart TV remote to trigger Home Assistant scenes
• Combine with an IR LED to create a universal remote
• Use it to control other IoT devices

Wrapping Up

Using an IR sensor with your ESP32 is a great way to repurpose old remote controls and add wireless input to your electronics projects. With just a few components, you can decode IR signals and trigger any behaviour you want with the ESP32!

Also, check out how to build a full Universal IR Remote to control devices like TV, fans, and a lot more!

Let us know what creative uses you come up with!

Thanks for reading!
