ESP8266 NodeMCU With BH1750 Ambient Light Sensor Using Arduino

An ambient light sensor with 16 bits is called the BH1750. In this article, you will learn how to use the BH1750 ambient light sensor with the ESP8266 NodeMCU board using the Arduino IDE. The sensor communicates with a microcontroller using the I2C communication protocol.

Learn how to install the required libraries, wire the sensor to the ESP8266 NodeMCU board, and create a simple sketch to display the sensor readings in the Serial Monitor.

Introducing a BH1750 Ambient Light Sensor

The BH1750 is a 16-bit ambient light sensor that uses the I2C standard to communicate. It outputs brightness measurements in lux (an SI-derived unit of illuminance). It can measure a minimum of 1 lux and a maximum of 65535 lux.

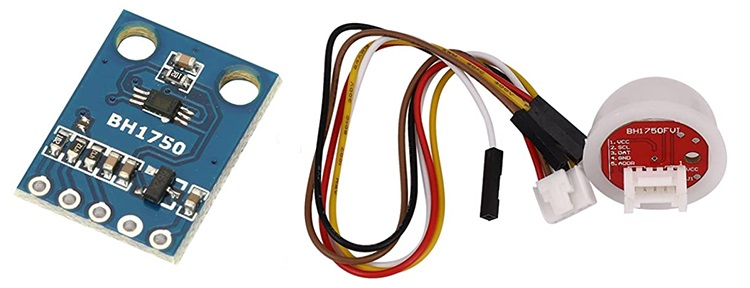

The sensor board may come in different breakout board forms. Below are some pictures. The BH1750 sensor is shown in both images.

BH1750 Features

The following is a list of the BH1750 sensor's features. Consult the datasheet for the BH1750 sensor for more information.

• I2C bus interface.
• Spectral responsibility is approximately the human eye response.
• Illuminance to digital converter.
• Range: 1–65535 lux.
• Low current is caused by the power-down function.
• 50Hz/60Hz light noise rejection function.
• It is possible to select two different I2C slave addresses.
• Small measurement variation (+/- 20%).
• The influence of infrared is very small.
• Supports continuous measurement modes.
• supports a one-time measurement mode.

Measurement Modes

One-time measurement and continuous measurement are the two distinct measurement modes that the sensor supports. Each mode supports three distinct resolution modes.

The sensor continually measures ambient light levels in continuous measurement mode. The sensor measures the ambient light value once while in one-time measurement mode before entering power-saving mode.

Applications

Because the BH1750 is an ambient light sensor, it may be used in a wide variety of applications. As an example:

• To detect if an LED is lit.
• To detect if it is day or night.
• To adjust LCDs and screens' brightness.
• Adjust or turn on/off the LED’s brightness according to ambient light.

BH1750 Pinout

Here’s the BH1750 pinout:

The I2C sensor address is set via the ADD pin. The I2C address is 0x23 if the voltage on that pin is less than 0.7VCC (the pin is left floating or connected to GND). If the voltage is higher than 0.7xVCC (pin connected to VCC), the address is 0x5C. To summarise:

• ADD pin floating or connected to GND → address: 0x23
• ADD pin connected to VCC → address: 0x5C

BH1750 I2C Interface

The BH1750 ambient light sensor supports an I2C interface.

The BH1750 sensor may be connected to the ESP8266 using the default I2C pins:

The ESP8266's default I2C pins are GPIO 5 and GPIO 4. Other pins may be used as long as they are properly set in the code.

BH1750: Read Ambient Light with ESP8266

Let's put the BH1750 sensor to the test now that you're more acquainted with it. In this part, we'll put up a simple project that reads ambient light and displays it in the Arduino IDE Serial Monitor.

Parts Required

To complete this tutorial, you need the following parts:

• BH1750 ambient light sensor
• ESP8266
• Breadboard (optional)
• Jumper wires (optional)

You can use the preceding links to find all the parts for your projects at the best price!

Schematic – ESP8266 with BH1750

Wire the BH1750 sensor to the I2C pins of the ESP8266. You may follow the next schematic diagram.

You can also follow the next table:

By not connecting the ADD pin, we are selecting the I2C address 0x23. Connect it to 3.3V instead to select the 0x5C address.

Preparing Arduino IDE

Using the Arduino IDE, we will program the ESP8266 board. As a result, ensure that you have the ESP8266 add-on installed. Continue to the next tutorial:

• Install the ESP8266 Board in Arduino IDE

Installing the BH1750 library

There are numerous libraries available for reading data from the BH1750 sensor. We'll be using Christopher Laws' BH1750 library. It is ESP32, ESP8266, and Arduino-compatible.

Go to Sketch > Include Library > Manage Libraries after starting the Arduino IDE. It's time to open the library manager.

Install the Christopher Laws BH1750 library by searching for “BH1750” in the search box.

Code – Reading BH1750 Ambient Light Sensor

In your Arduino IDE, paste the following code: This code simply reads ambient light levels in lux and shows the values on the serial monitor. It is the BH1750test library's example code, which can be accessed by going to File > Examples > BH1750 > BH1750test.

/*
  Example of BH1750 library usage. This example initialises the BH1750 object using the default high resolution continuous mode and then makes a light level reading every second.
*/

#include <Wire.h>
#include <BH1750.h>

BH1750 lightMeter;

void setup(){
  Serial.begin(9600);

  // Initialize the I2C bus (BH1750 library doesn't do this automatically)
  Wire.begin();
  // On esp8266 you can select SCL and SDA pins using Wire.begin(D4, D3);
  // For Wemos / Lolin D1 Mini Pro and the Ambient Light shield use Wire.begin(D2, D1);

  lightMeter.begin();

  Serial.println(F("BH1750 Test begin"));
}

void loop() {
  float lux = lightMeter.readLightLevel();
  Serial.print("Light: ");
  Serial.print(lux);
  Serial.println(" lx");
  delay(1000);
}

The library also provides other examples worth exploring.

How the Code Works

By including the required libraries, we start with the BH1750.h library to read from the sensor and the Wire.h library to use the I2C communication protocol.

#include <Wire.h>
#include <BH1750.h>

Then, we create an BH1750 object called lightMeter.

BH1750 lightMeter;

In the setup(), initialize the Serial Monitor at a baud rate of 9600.

Serial.begin(9600);

Initialize the I2C communication protocol. It will start I2C communication on the microcontroller’s default I2C pins. If you want to use different I2C pins, pass them to the begin() method, like this: Wire.begin(SDA, SCL).

Wire.begin();

Initialize the sensor using the begin() method on the BH1750 object (lightMeter).

lightMeter.begin();

lightMeter.begin();

In the loop(), we create a variable called lux, which saves the luminance values. To get the value, you simply call the readLightLevel() function on the BH1750 object (lightMeter).

float lux = lightMeter.readLightLevel();

Finally, display the measurement on the serial monitor.

Serial.print("Light: ");
Serial.print(lux);
Serial.println(" lx");

You get and print a new reading every second.

delay(1000);

Demonstration

The code can now be uploaded to your board. Connect the board to the computer first. Then select the ESP8266 board you are using by going to Tools > Board. Select the COM port that your board is connected to by going to Tools > Port. Lastly, press the upload button.

After successfully uploading the code, open the serial monitor at a baud rate of 9600.

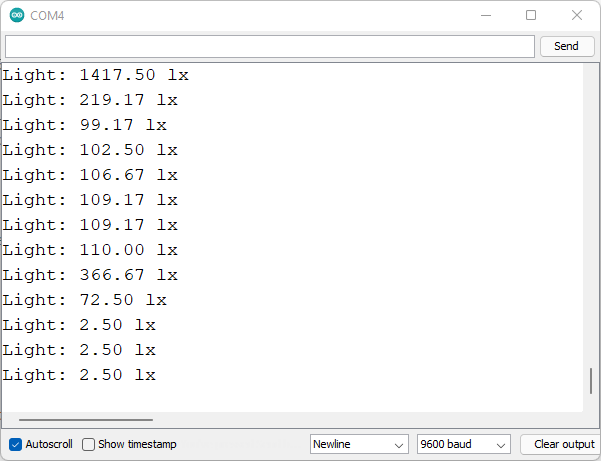

New luminance readings should be printed on the serial monitor.

Other Useful Functions

Other examples that illustrate more useful features and functions are provided by the library we're using with the BH1750 sensor. Check this page for a complete list of BH1750 library examples.

Setting Measurement Mode

The library uses continuous high-resolution measurement mode by default, but you may change this by passing the appropriate measurement mode to the begin() method when initializing the sensor. As an example:

lightMeter.begin(BH1750::CONTINUOUS_HIGH_RES_MODE)

Here’s a list of all available modes:

• BH1750_CONTINUOUS_LOW_RES_MODE
• BH1750_CONTINUOUS_HIGH_RES_MODE (default)
• BH1750_CONTINUOUS_HIGH_RES_MODE_2
• BH1750_ONE_TIME_LOW_RES_MODE
• BH1750_ONE_TIME_HIGH_RES_MODE
• BH1750_ONE_TIME_HIGH_RES_MODE_2

See the properties of each mode in the previous section.

If you like ESP8266, you may also like:

• Add WiFi to Arduino UNO with ESP8266 WiFi Module
• MicroPython Programming with ESP32 and ESP8266
• How to Install uPyCraft IDE on a Windows PC
• How to Install uPyCraft IDE on a Mac OS X

We hope you find this tutorial useful. Thanks for reading
